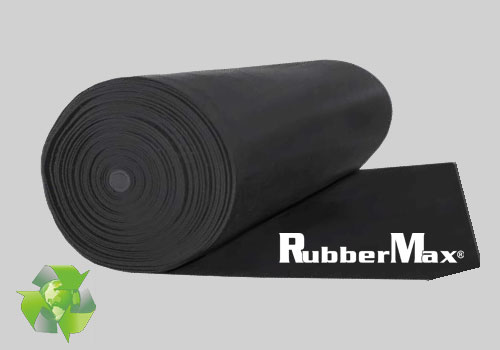

Rubbermax® Masticated Rubber

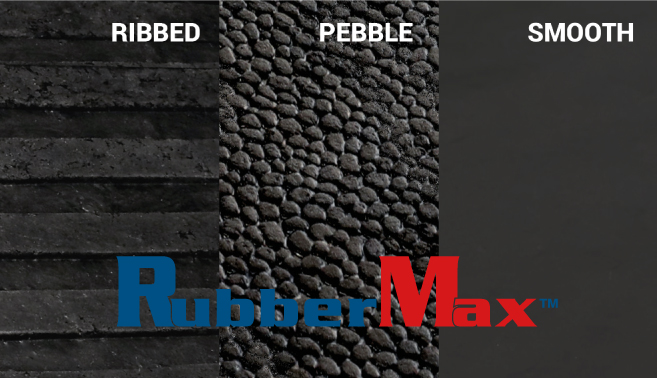

RM Biltrite® Rubbermax® Masticated Rubber is manufactured from high-quality tire material, resulting in an economical and environmentally-friendly product. It is a high-quality fiber-reinforced in rolls and sheets. It meets Industrial Specs for Automotive & Industrial markets. It has excellent tensile strength, tear strength, abrasion, resistance, resilience, ozone and weather resistance. All masticated rubber products are fiber-reinforced and fully vulcanized for maximum strength and durability. Products can withstand harsh conditions like exposure to ozone and low temperatures. Available in smooth, pebble, and ribbed finishes.



RubberMax® Masticated Rubber v/s Masticated-like Rubber



Applications

  • Automotive industry
  • Trucking industry
  • Mining industry
  • Agriculture industry
  • Die Cutting








TECHNICAL SPECIFICATIONS
Name RubberMax® Smooth Masticated Rubber RubberMax® Pebble Masticated Rubber RubberMax® Ribbed Masticated Rubber
Item ID IR910 IR912 IR914
Hardness
ASTM D2240		 Shore A
(± 2)		 80 80 80
Tensile Strength
With Grain (min)		 psi 754 754 754
MPa 5 5 5
Tensile Strength
Across Grain (min)		 psi 437 437 437
MPa 3 3 3
Elongation
With Grain (min)		 % 15 15 15
Elongation
Across Grain (min)		 % 40 40 40
Temperature Range °F -22 - +212 -22 - +212 -22 - +212
°C -20 - +75 -20 - +75 -20 - +75
Surface No talc / film liner No talc / film liner No talc / film liner
Color Black Black Black



ROLL DIMENSIONS SHEET DIMENSIONS
Units Widths Thicknesses Widths Thicknesses Lengths
U.S. 34” 36” 43” 48” 49” 52” 56” 5/64” 1/8” 3/16” 1/4” 5/16” 3/8” 1/2” 24” - 56” 0.8” - 2.00” 2” - 7.5”
Metric 86.4 cm 91.4 mm 109.2 mm 121.9 mm 124.5 mm 132.1 mm 142.2 mm 1.9 mm 3.2 mm 4.8 mm 6.4 mm 7.9 mm 9.5 mm 12.7 mm 60.9 - 142.2 cm 2.0 - 50.8 mm 0.6 - 2.3 m

Custom sizes available upon request
